Two Edge PDC Inserts Gas Drilling 1313 PDC Diamond

Name: Two Edge PDC Inserts Gas Drilling 1313 PDC Diamond
Brand: Hainaisen
Price: 1 USD

Quality Two Edge PDC Inserts Gas Drilling 1313 PDC Diamond wholesale

Brand Name : Hainaisen

Model Number : liangleng1613

Certification : ISO9001

Place of Origin : China

MOQ : 50 pieces

Price : To be negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000pcs per day

Delivery Time : 5-7 work days

Packaging Details : customized

Machine type : Drilling Tool

Material : Carbide,Carbon Steel

Use : Well Drilling,Coal Mining,Oil or gas drilling

Product name : PDC cutter,PDC drill bit

edge : 2

Cutter Model : 1313

Contact Now

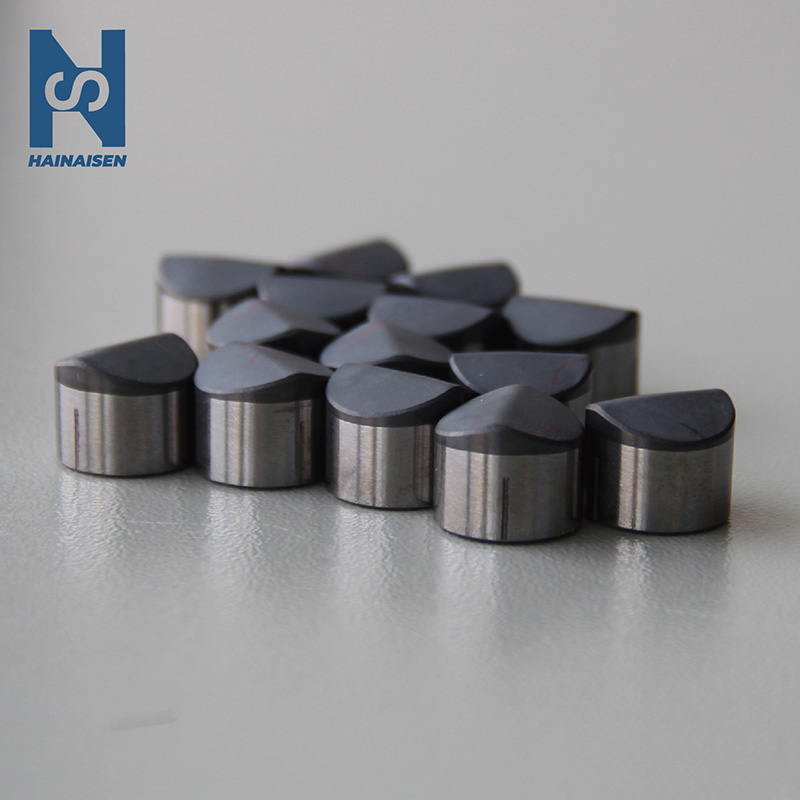

Two-edge PDC Cutter Polycrystalline Diamond Compact

PDC cutters are mainly used for oil drilling equipment and wearing parts of oil drill bits, coal drill bits and machining tools. They are made from high-quality synthetic diamond powder and tungsten carbide powder.

PDC tools combine the high hardness and wear resistance of diamond and tungsten carbide and can be used in a wide variety of drill tools.

Cutter Model	Diameter(mm)	Total Height(mm)	Height of Diamond Layer	Chamfer of Diamond Layer
0808	8.0±0.05	8.0±0.1	2.0±0.1	0.41±0.05
1008	10.0±0.05	8.0±0.1	2.0±0.1	0.41±0.05
1308	13.44±0.05	8.0±0.1	2.0±0.1	0.41±0.05
1313	13.44±0.05	13.00±0.1	2.0±0.1	0.41±0.05
1608	16.0±0.05	8.0±0.1	2.0±0.1	0.41±0.05
1613	16.0±0.05	13.00±0.1	2.0±0.1	0.41±0.05
1616	16.0±0.05	16.0±0.1	2.0±0.1	0.41±0.05
1908	19.0±0.05	8.0±0.1	2.0±0.1	0.41±0.05
1913	19.0±0.05	13.00±0.1	2.0±0.1	0.41±0.05
1916	19.0±0.05	16.0±0.1	2.0±0.1	0.41±0.05
2216	22.22±0.05	16.0±0.1	2.0±0.1	0.41±0.05
2219	22.22±0.05	19.0±0.1	2.0±0.1	0.41±0.05

1. high hardness, high wear resistance, high impact resistance.
2. The service life is 5-10 times longer than ordinary cemented carbide, which significantly reduces the frequency of replacing drill bits.
3. Effective and stable drilling speed, protect equipment and reduce drilling cost (accounting for 30%-40% of total cost)

Two Edge PDC Inserts Gas Drilling 1313 PDC Diamond

Our Principle

We adhere to the principles of high quality, high quality service, and innovation. We also insist on providing efficient products and excellent service. Please feel free to contact us if you are interested in our drills. We look forward to working with you!

FAQ

1. Are you a trading company or manufacturer?

We have manufactured pdc cutters since 2013, so we have price advantages.

2. How can we guarantee the product quality?
We provide pre-production sample before mass production.
We provide final inspection before shipment.

3. About lead time and shipping time?

The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.

4. Is it produced according to the standard? And can I expect a quality product?

Yes, all our activities are ISO9001 certified, both products and services. At the same time, mature production technology will ensure the quality meets international requirements. We have carried out strict inspection in production. Our drill bits are exported to Middle East, Europe, North America, South America, Australia and other countries and regions.

Communication knows no boundaries, no matter how far we are. Please feel free to contact us if you have any questions.
